Horizontal Form Fill Seal
HFFS Sachet Machines
HS-Series Sachet Baggers
Overview

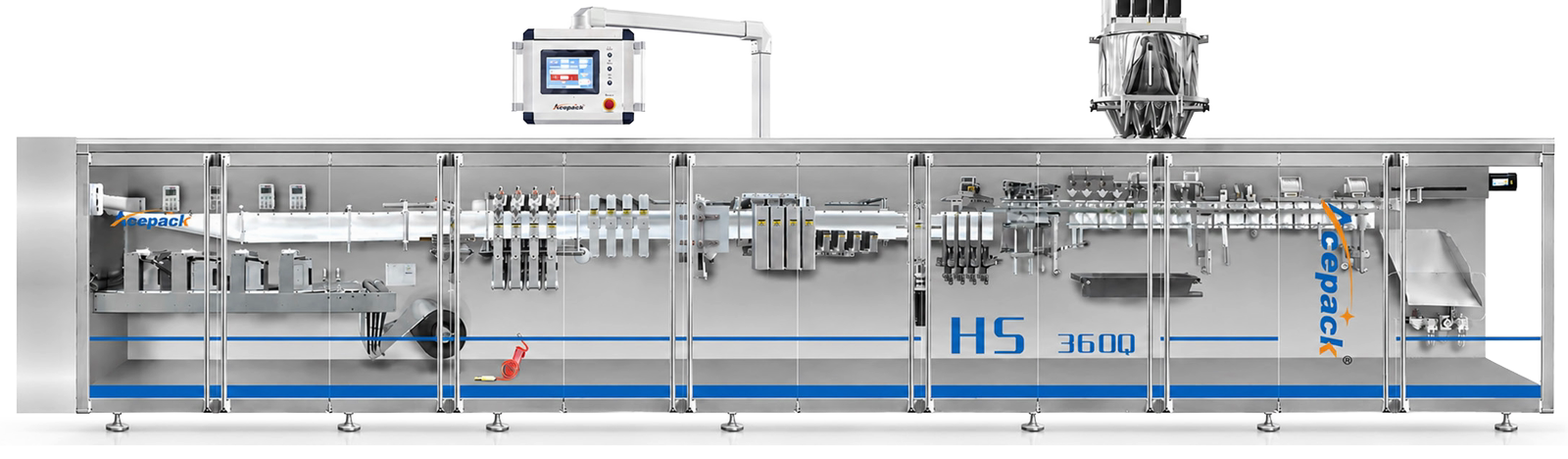

Most machines make you choose: run fast, or run clean. The HS-360Q refuses. Four synchronized servos drive it to 320 pouches a minute while holding the registration and seal quality you’d expect at half the speed — hour after hour, shift after shift.
A quadro cutting system keeps four knives in rotation so speed never costs you accuracy. No-bag-no-fill protection means a missed pouch never costs you product, and full SUS304 construction stands up to washdown for years. Nothing gets wasted — not product, not film, not uptime. If throughput is the number your business runs on, this is the machine you build your line around.
The HS-Series spans two-lane Duo and four-lane Quad builds, plus reclosable zipper configurations — compare them below, and tell us your target speed and pouch and we’ll match you to the right one.
Model types

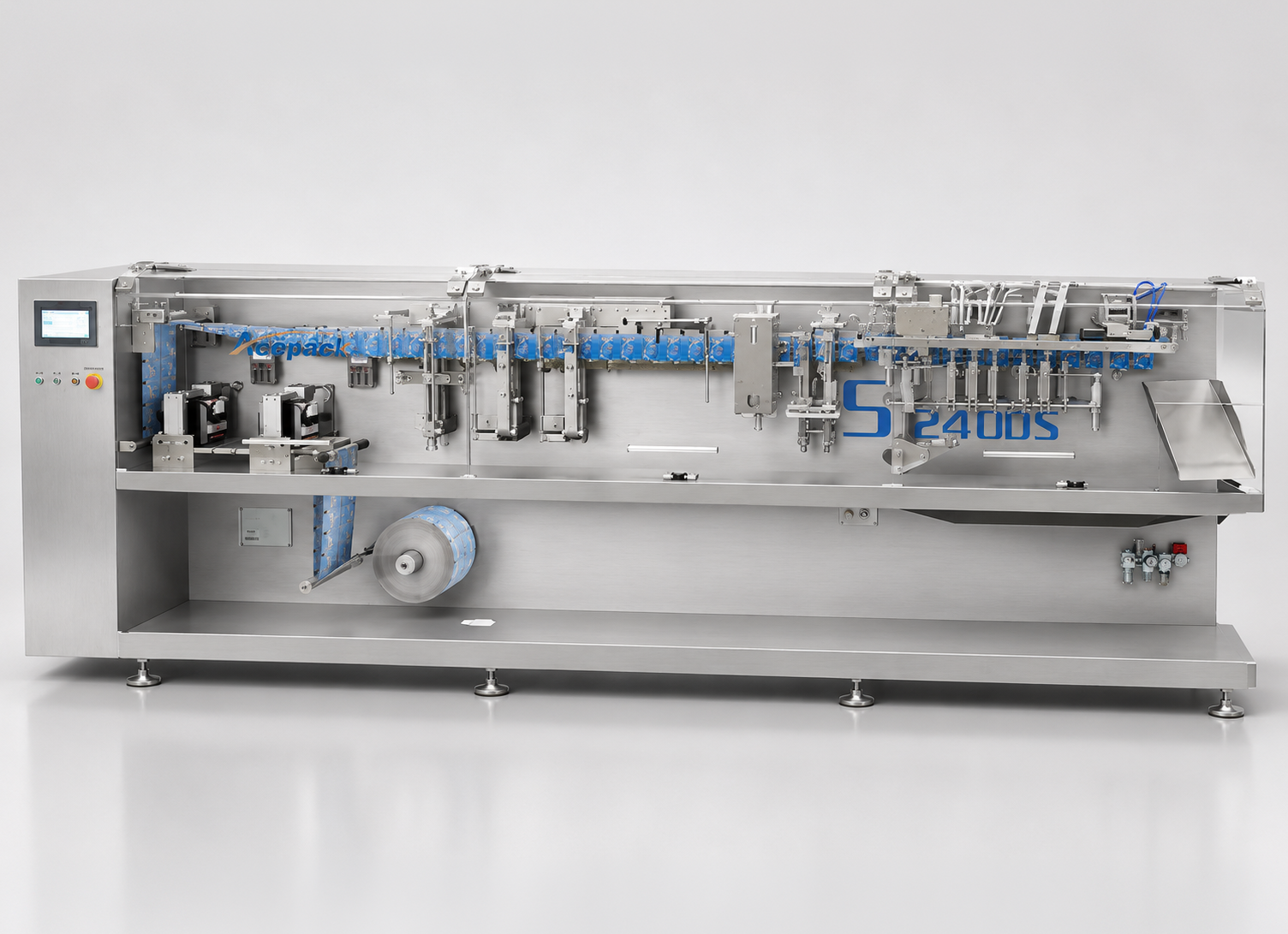

| S-180D (Duo) | HS-360Q (Quad) | S-Z Single (Zipper) | S-240DZ Duplex (Zipper) | |
|---|---|---|---|---|
| Configuration | 2 lanes (Duo) | 4 lanes (Quad) | Single-lane + zipper | Duplex + zipper |
| Bagging speed | 80 – 140 ppm | Up to 320 ppm | 30 – 50 ppm | 60 – 80 ppm |
| Max pouch | 90 × 225 mm | 90 × 225 mm | 240 × 260 mm | 120 × 225 mm |
| Fill volume | Up to 100 ml | Up to 100 ml | Up to 1,000 ml | Up to 180 ml |
| Air consumption | 200 NL / min | 400 NL / min | 200 – 300 NL / min | 300 NL / min |
Key Features
Speed & precision
- Synchronized servo drives — up to 320 bags/min on the Quad
- Quadro cutting system — four knives in rotation
- Holds registration and seal quality shift after shift
Build & protection
- Full SUS304 washdown construction
- No-bag-no-fill protection prevents product loss
- Heavy frame for stability at speed
Formats & filling
- 3-side and 4-side seal pouch formats
- Fill volume up to 100 ml (up to 1 L on zipper builds)
- Optional inline zipper station for reclosable sachets
