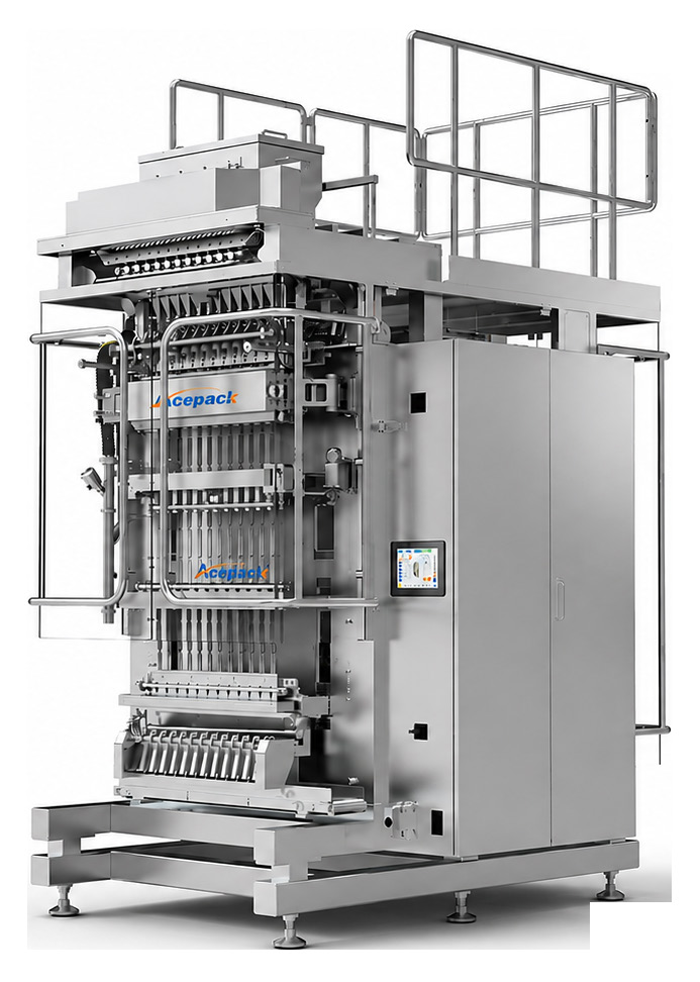

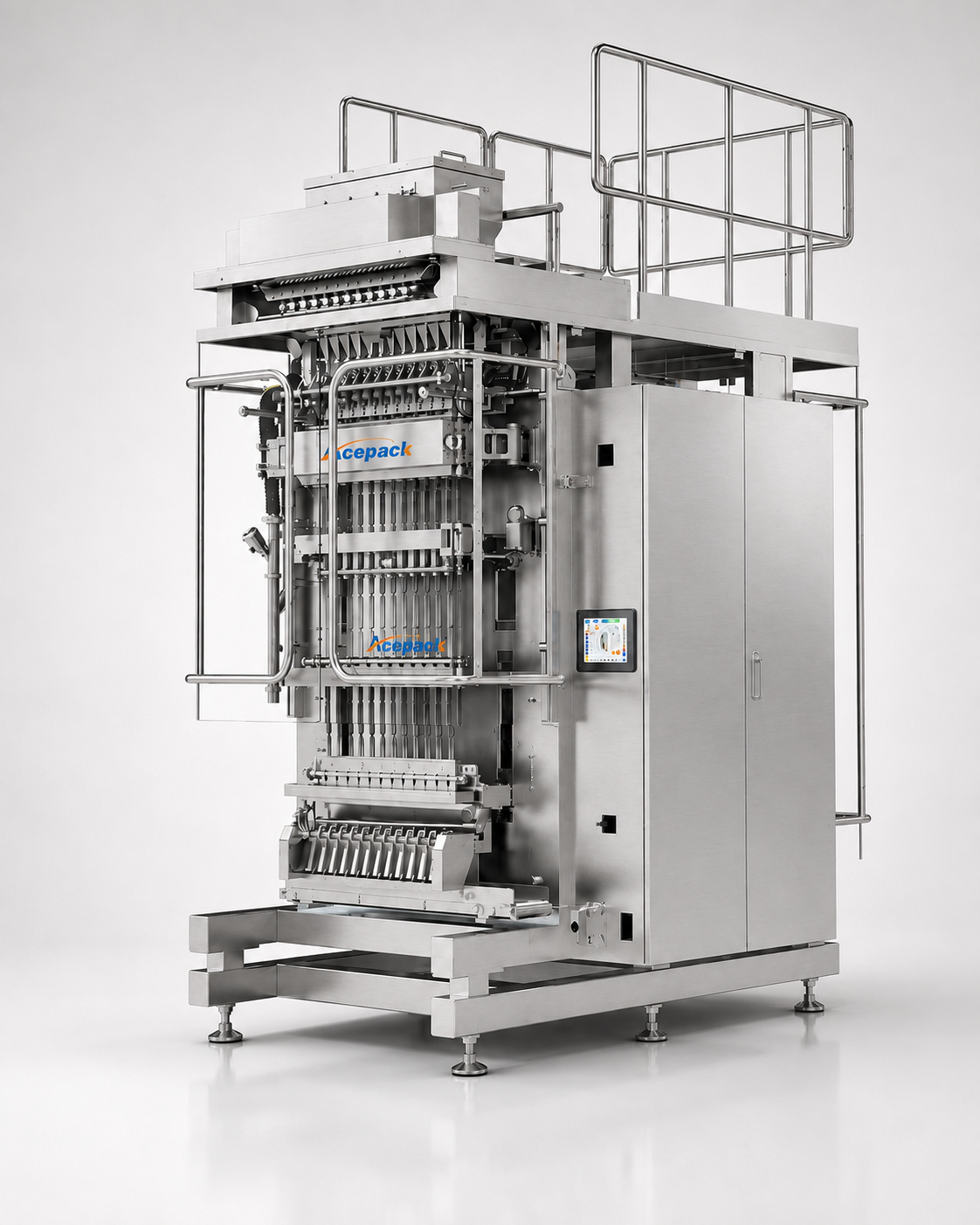

Multi-Lane Stick Pack
MS-Series
Full-Servo Multi-Lane Stick Bagger
Overview
Single-lane machines make you buy floor space to buy output. The MS-Series doesn’t: up to eighteen servo-driven lanes run side by side in one frame, each forming, filling, sealing, and cutting its own stick at 40 to 80 cuts a minute, every lane, every shift.
Each lane is fed by the metering system your product needs: ceramic pump, screw, cup, or counter, and the servos hold registration through every change of dose, cut, and film width. Nitrogen flush keeps residual oxygen under 2%, audit trails and batch data come standard, and when output is the number your line lives on, you add lanes, not machines.
Sticks run 15 to 70 mm wide and 60 to 180 mm long, back-seal or three-side seal, with straight, zig-zag, round-corner, or die-cut ends. We run sample packs on your own film before the machine ships.
Model types
| MS-200 | MS-400 | MS-600 | MS-900 | |
|---|---|---|---|---|
| Lane count | 1 – 4 | 4 – 12 | 4 – 18 | 5 – 18 |
| Bagging speed | Up to 320/min | Up to 960/min | Up to 1,440/min | Up to 1,440/min |
| Max film width | 260 mm | 500 mm | 750 mm | 980 mm |
| Frame size | 1,750 × 1,100 mm | 2,400 × 1,550 mm | 2,400 × 1,800 mm | 2,400 × 2,050 mm |
| Weight | ~1,300 kg | ~3,000 kg | ~3,200 kg | ~3,500 kg |
Key Features
Lanes & servo control
- Full servo control on every lane
- Four to eighteen lanes per frame
- Independent lane shut-off
- No-fill lane protection
- Servo pull with edge guide
Metering & packs
- Interchangeable metering heads (pump / screw / cup / counter)
- Multiple end-cut options
- Photo-eye registration
- Nitrogen flush, oxygen under 2%
- Date coding on every lane
Control & compliance
- 18.5 in. HMI with recipe storage
- Audit trail & electronic signature
- Batch data statistics
- Washdown-ready stainless frame
- EHS-compliant guarding & tool-free changeover
